Deployment Process

The deployment process is built around the principle that production servers never build, install, or pull source code. All compilation happens on the staging server; only the finished Docker image travels to production.

Why this matters

The April 2026 security incident was caused by running yarn install on the production server. A malicious npm postinstall script gained root access via the Docker socket. The new process eliminates this attack vector entirely — production never touches npm packages.

Architecture Overview

mermaid

---
title: Server Roles
config:
    look: handDrawn
---
flowchart TD

classDef staging fill:#BBDEFB,stroke:#1E88E5,stroke-width:2px
classDef prod fill:#A5D6A7,stroke:#43A047,stroke-width:2px

subgraph STAGING ["🔵 Staging Server (klhhh-staging)"]
  direction LR
  SR1["Git repositories<br/>(backend + frontend)"]:::staging
  SR2["Docker build environment"]:::staging
  SR3["Image mode testing<br/>(docker-compose.yml)"]:::staging
  SR4["Image transfer to prod<br/>(docker save | gzip | ssh | docker load)"]:::staging
end

subgraph PROD ["🟢 Production Server (klhhh-prod)"]
  direction LR
  PR1["Pre-built Docker images<br/>(klhhh-strapi:latest<br/>klhhh-frontend:latest)"]:::prod
  PR2["docker-compose.yml<br/>+ .env (secrets)"]:::prod
  PR3["Running containers"]:::prod
end

STAGING -->|"SSH image transfer — port 8288"| PROD

style STAGING fill:#E3F2FD,stroke:#1E88E5,stroke-width:3px
style PROD fill:#E8F5E9,stroke:#43A047,stroke-width:3px

Branch & Versioning Strategy

Both backend and frontend repositories use two branches:

Branch	Purpose
`development`	Active development — deployed to staging for testing
`production`	Stable releases only — squash-merged from `development`

Release tags (v1.2.7, v1.1.8) are always created on the production branch via a published GitHub release. Backend and frontend are versioned independently and can be deployed separately.

Tag detection

The deploy script automatically detects whether a given version tag already exists on the remote:

Tag exists → checks out that exact tag (normal release and rollback scenario)
Tag doesn't exist → checks out production branch HEAD and creates the tag automatically

Environment Variables per Environment

VITE_ variables are baked into the JavaScript bundle at build time — the frontend image for staging and prod are genuinely different. Strapi uses a runtime .env file so a single image can serve both environments with different configs.

Variable	Staging	Production
Frontend URL	`https://test.klharriettes.org`	`https://klharriettes.org`
Strapi URL	`https://admin-test.klharriettes.org`	`https://admin.klharriettes.org`
`STRAPI_ENV`	`staging`	`production`
`VITE_ENV`	`staging`	`production`
Contact email	`thomas@dierochs.de`	`committee@klharriettes.org`
Feature: Expenses	`true`	`false`
CORS origins	`https://test.klharriettes.org`	`https://klharriettes.org,https://www.klharriettes.org`

The `deploy.yml` Playbook

All deployments go through playbooks/deploy.yml.

Tipp

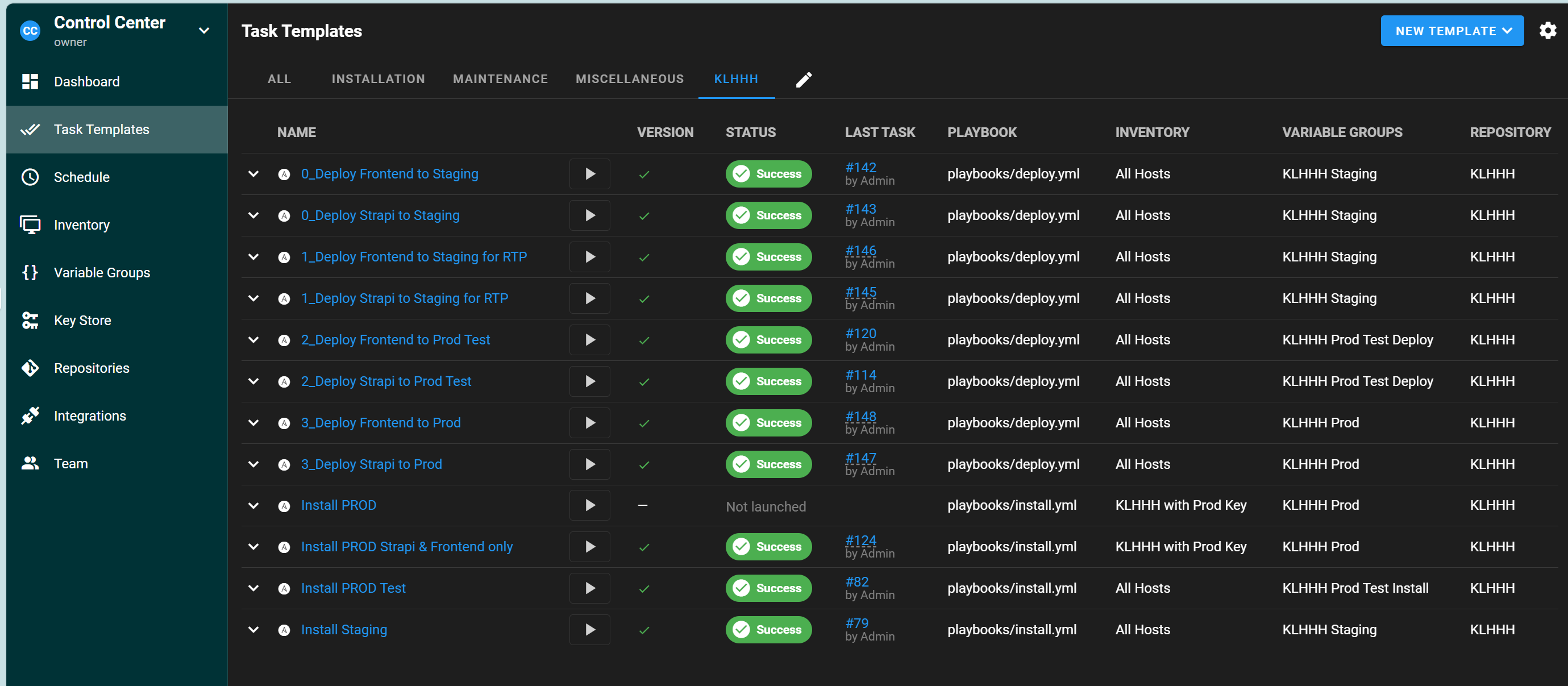

All variations of the deploy.yml playbook are best managed using Semaphore UI - a set of Task Templates can make testing and deployment much easier. Semaphore runs on a small VM in a docker container and is quite simple to set up. An example is shown in the image below:

Semaphore Screenshot

It has three plays that run in sequence.

Play structure

Play 1 — Build images on staging
          └─ Push to Docker Hub               (target=prod only)
Play 2 — Start built images on staging        (target=staging only)
Play 3 — Transfer images to prod via SSH      (target=prod only)

Required parameter

-e target=staging|prod is always required. Without it the playbook will error.

Full parameter reference

Parameter	Default	Description
`target`	(required)	`staging` or `prod` — controls URLs baked in, transfer, and restart
`build_tag`	`latest`	Version to build. See tag behaviour table below.
`git_version`	(derived)	Override the git ref directly (branch, commit, tag). Overrides `build_tag`.
`prod_host`	`klhhh-prod`	Inventory hostname for the prod restart play. Override for prod-test VM.
`prod_transfer_host`	(staging group_vars)	IP/hostname to SSH-transfer the image to. Override for prod-test VM.
`prod_transfer_port`	(staging group_vars)	SSH port for image transfer. Override for prod-test VM.

`build_tag` behaviour

Command	Git checkout	Docker Hub push	Use case
(omit `build_tag`)	`development` branch	No	Test latest dev on staging
`-e build_tag=latest`	`development` branch	No	Same as above, explicit
`-e build_tag=1.2.7` + `target=staging`	`v1.2.7` tag	No	Test specific version on staging
`-e build_tag=1.2.7` + `target=prod`	`v1.2.7` tag	Yes	Production release deploy

URL baking — how staging group_vars are overridden

When building for target=prod, the playbook's play-level vars: block overrides the staging server's group_vars so that prod URLs (not test URLs) get baked into the Vite bundle and Strapi build args:

yaml

vars:
  strapi_server_url:  https://admin.klharriettes.org
  strapi_frontend_url: https://www.klharriettes.org
  domain_name:        klharriettes.org
  strapi_api_token:   "{{ strapi_api_token_prod }}"
  vite_contact_email: committee@klharriettes.org
  vite_contact_phone: "601123226487"

When building for target=staging, these vars are not overridden — the staging group_vars apply as-is (test URLs, staging contact details).

Full Deployment Pipeline

mermaid

---
title: Deployment Pipeline
config:
    look: handDrawn
---
flowchart TD

classDef dev fill:#FFE082,stroke:#FFCA28,stroke-width:2px
classDef staging fill:#BBDEFB,stroke:#1E88E5,stroke-width:2px
classDef prod fill:#A5D6A7,stroke:#43A047,stroke-width:2px
classDef action fill:#F3E5F5,stroke:#8E24AA,stroke-width:2px

A["💻 Develop on development branch"]:::dev

subgraph SIT1 ["🔵 Test — development branch on staging"]
  B1["deploy.yml -e target=staging"]:::action
  B2["Build image with staging URLs"]:::staging
  B3["Start container on staging<br/>(test.klharriettes.org)"]:::staging
  B4["Test & bugfix"]:::staging
end
style SIT1 fill:#E3F2FD,stroke:#1E88E5,stroke-width:3px

subgraph MERGE ["📦 Merge & Release"]
  C1["Squash merge development → production<br/>on GitHub"]:::dev
  C2["Prepare & publish GitHub release<br/>with tag v1.2.7"]:::dev
end
style MERGE fill:#FFF9C4,stroke:#F9A825,stroke-width:3px

subgraph SIT2 ["🔵 Test — production branch on staging"]
  CC1["deploy.yml -e target=staging<br/>-e git_version=production"]:::action
  CC2["Build production branch<br/>with staging URLs"]:::staging
  CC3["Test & verify merge"]:::staging
end
style SIT2 fill:#E3F2FD,stroke:#1E88E5,stroke-width:3px

subgraph PRODTEST ["🔵 Validate prod pipeline"]
  PT1["deploy.yml -e target=prod -e build_tag=1.2.7<br/>-e prod_host=klhhh-prod-test"]:::action
  PT2["Build with prod URLs<br/>Push to Docker Hub"]:::staging
  PT3["Transfer & start on prod-test VM"]:::staging
end
style PRODTEST fill:#E3F2FD,stroke:#1E88E5,stroke-width:3px

subgraph DEPLOY ["🟢 Deploy — Production"]
  E1["deploy.yml -e target=prod -e build_tag=1.2.7"]:::action
  E2["Transfer image to prod<br/>Restart containers"]:::prod
  E3["Smoketest production"]:::prod
end
style DEPLOY fill:#E8F5E9,stroke:#43A047,stroke-width:3px

A --> B1
B1 --> B2 --> B3 --> B4
B4 -- "Bugs found" --> A
B4 --> C1 --> C2 --> CC1 --> CC2 --> CC3
CC3 -- "Bugs found" --> A
CC3 --> PT1 --> PT2 --> PT3
PT3 -- "Bugs found" --> A
PT3 --> E1 --> E2 --> E3
E3 -- "Bugs found" --> A

Common Commands

1. Test development branch on staging

ansible-playbook playbooks/deploy.yml -e target=staging

# One service only
ansible-playbook playbooks/deploy.yml -e target=staging --tags strapi
ansible-playbook playbooks/deploy.yml -e target=staging --tags frontend

2. Test production branch on staging (after squash merge)

ansible-playbook playbooks/deploy.yml -e target=staging -e git_version=production

# One service only
ansible-playbook playbooks/deploy.yml -e target=staging -e git_version=production --tags frontend

3. Validate prod pipeline on prod-test VM

ansible-playbook playbooks/deploy.yml -e target=prod -e build_tag=1.2.7 \
  -e prod_host=klhhh-prod-test \
  -e prod_transfer_host=192.168.1.82 \
  -e prod_transfer_port=22

4. Deploy to production

# Both services
ansible-playbook playbooks/deploy.yml -e target=prod -e build_tag=1.2.7

# Independently
ansible-playbook playbooks/deploy.yml -e target=prod --tags frontend -e build_tag=1.2.7
ansible-playbook playbooks/deploy.yml -e target=prod --tags strapi  -e build_tag=1.1.8

Rollback

Rollback is a re-deploy of a previous tag. The tag exists so the playbook checks it out directly and pushes to Docker Hub:

ansible-playbook playbooks/deploy.yml -e target=prod --tags frontend -e build_tag=1.2.6

Deploy a specific git ref

ansible-playbook playbooks/deploy.yml -e target=staging -e git_version=feature/my-branch

First-Time Server Setup

1. Install server infrastructure

# Sets up infra, cloudflare, mysql, metabase, and config files.
# Strapi and frontend containers are NOT started (no image exists yet).
ansible-playbook playbooks/install.yml -e target=staging
ansible-playbook playbooks/install.yml -e target=prod

2. Initial data restore (staging)

Strapi's backup format is version-specific. If the current codebase has schema changes relative to the backup, restore must happen in two steps:

# Step 1 — deploy the last prod version (schema matches the backup)
ansible-playbook playbooks/deploy.yml -e target=staging -e build_tag=1.1.8

# Step 2 — restore the backup (Google Drive must be mounted)
ansible-playbook playbooks/restore.yml -e target=staging

# Step 3 — upgrade to current development version (runs schema migrations)
ansible-playbook playbooks/deploy.yml -e target=staging

If the codebase has no schema changes relative to the backup, skip step 1 and go straight to steps 2–3.

3. Generate staging API token

After staging Strapi is running for the first time:

Open https://admin-test.klharriettes.org/admin
Create an API token
Add it to the staging vault:

ansible-vault edit inventory/group_vars/staging/vault.yml
# add: strapi_api_token_staging: <your token>

Redeploy the frontend to pick it up:

ansible-playbook playbooks/install.yml -e target=staging --tags frontend
ansible-playbook playbooks/deploy.yml -e target=staging --tags frontend

Selective Re-runs

The --tags flag works on install.yml too — useful for pushing updated config files without reinstalling everything:

# Redeploy strapi .env only
ansible-playbook playbooks/install.yml -e target=staging --tags strapi

# Redeploy mysql docker-compose only
ansible-playbook playbooks/install.yml -e target=prod --tags mysql

# Redeploy all infrastructure
ansible-playbook playbooks/install.yml -e target=staging --tags infrastructure
